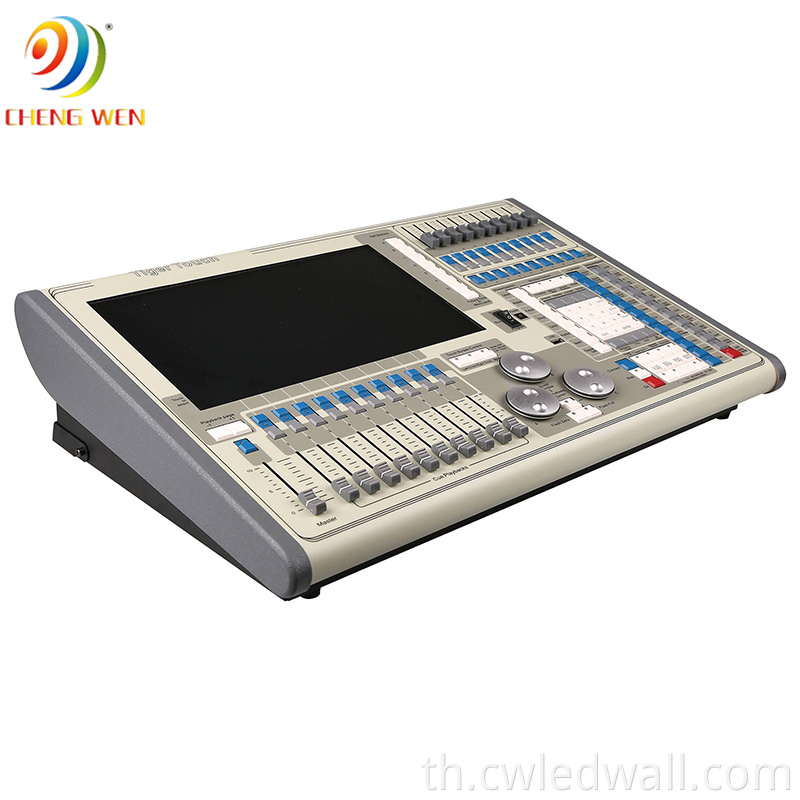

Model No.

JC-SPLHPLUSKT

System:

Powerful Titan 9.1 operating system;

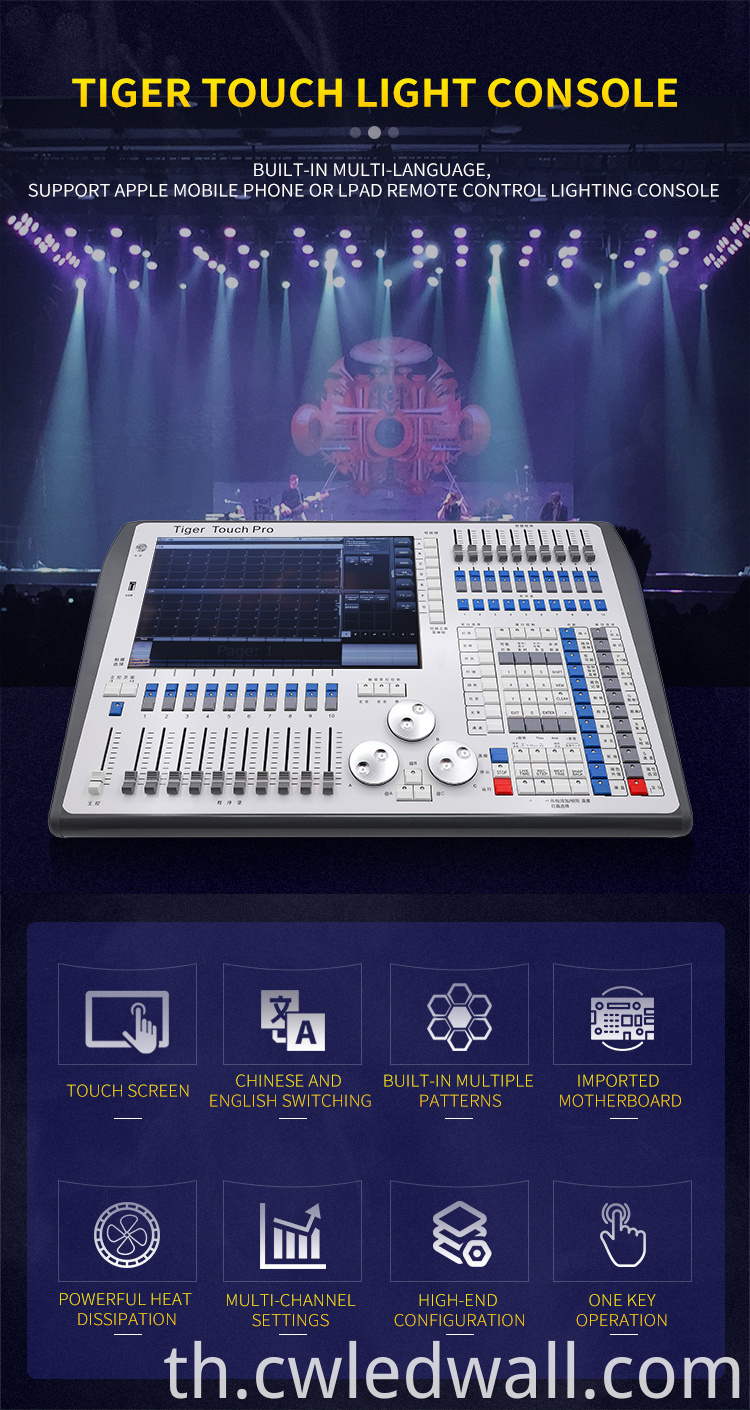

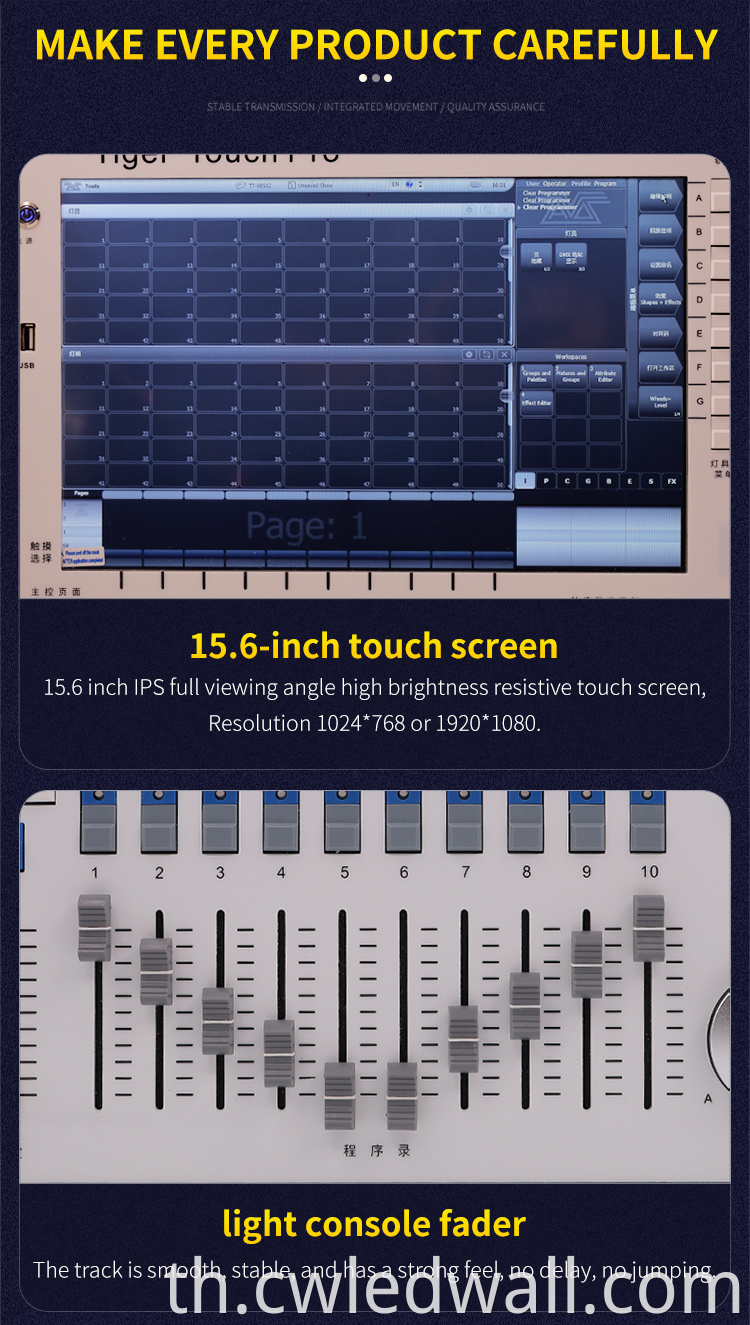

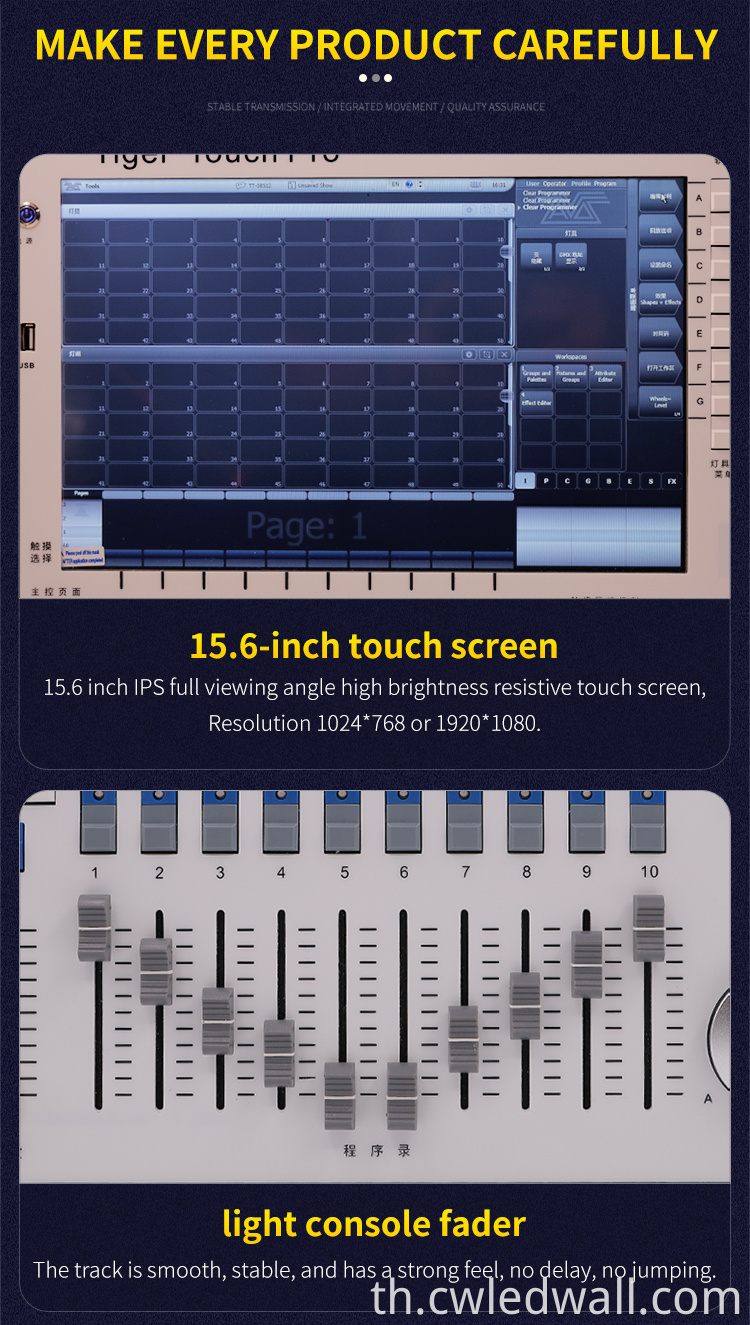

Touch screen:

Built-in two 15.6-inch high-resolution touch screen (industrial screen), the screen can be used in the console with the key combination of electric adjustable angle of 0 to 125 degrees. The other with a trackball mouse, easy to choose menu operation.

CPU:

Core i5/i7 CPU, 120GB high-speed solid state hard drive 4GB memory;

Output port:

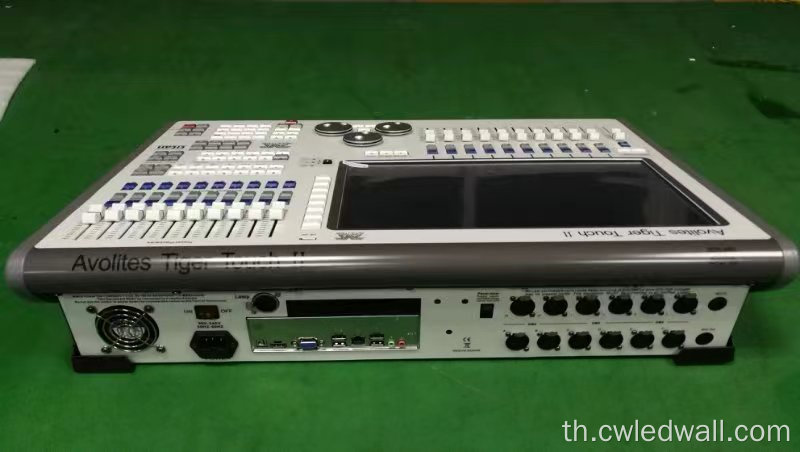

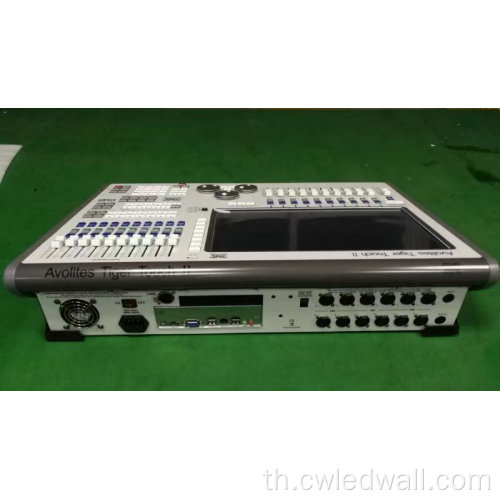

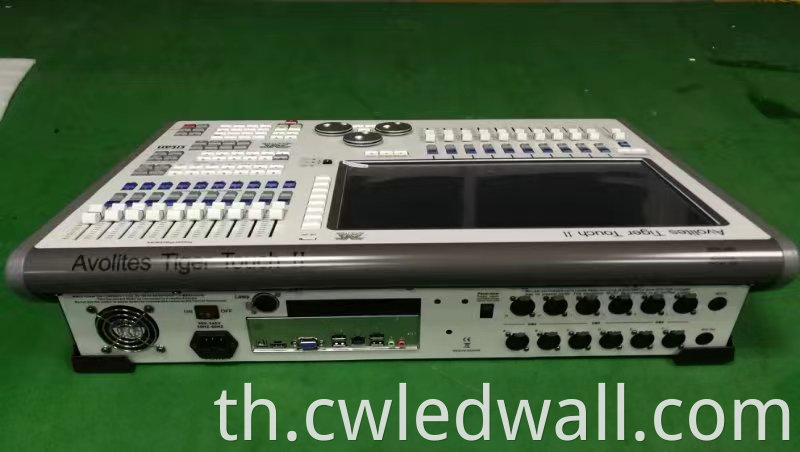

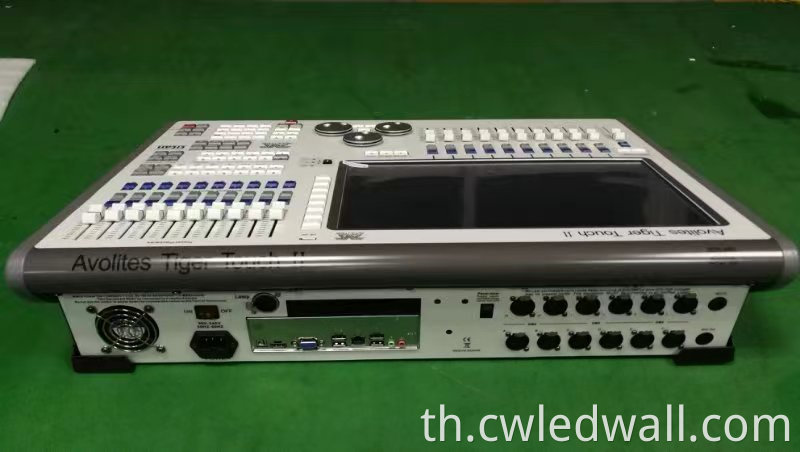

The console itself configuration 12 optically isolated signal output port (6144 channel)

Built-in 220V external power supply can be started UPS support networked to the computer equipment control a variety of lighting 3D visualization software;

10 megafunction button, allows you to operate the console faster;

20 playback faders, support for more than 1000 program playback;

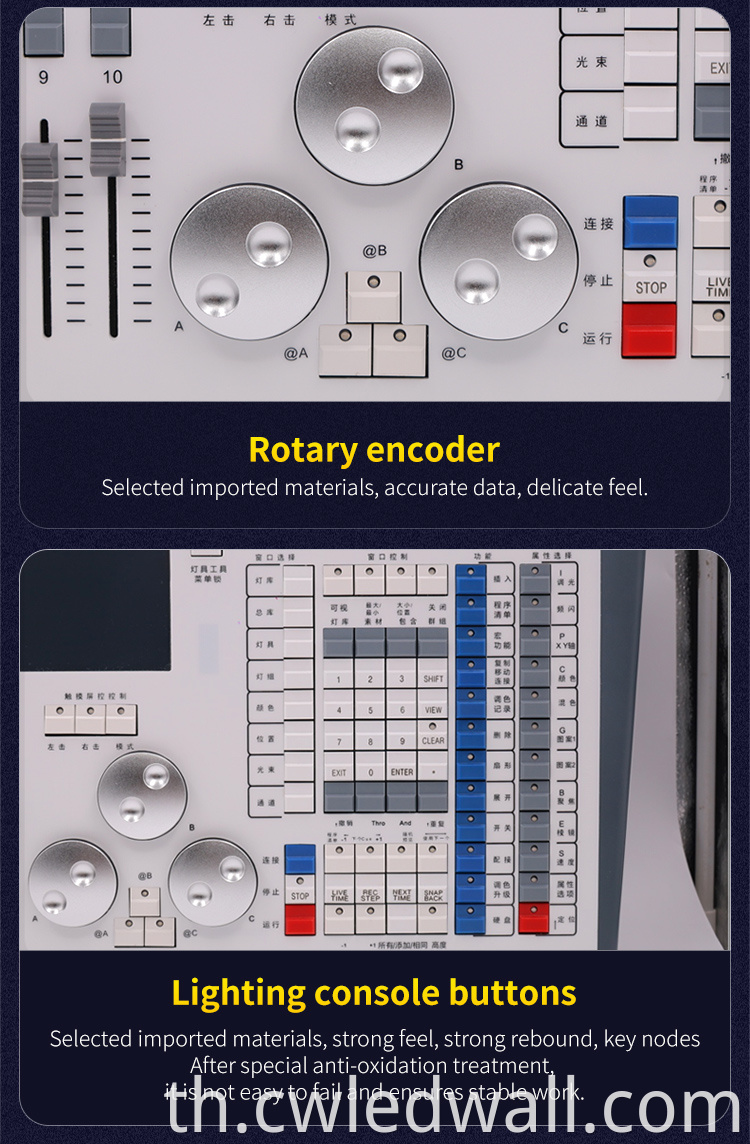

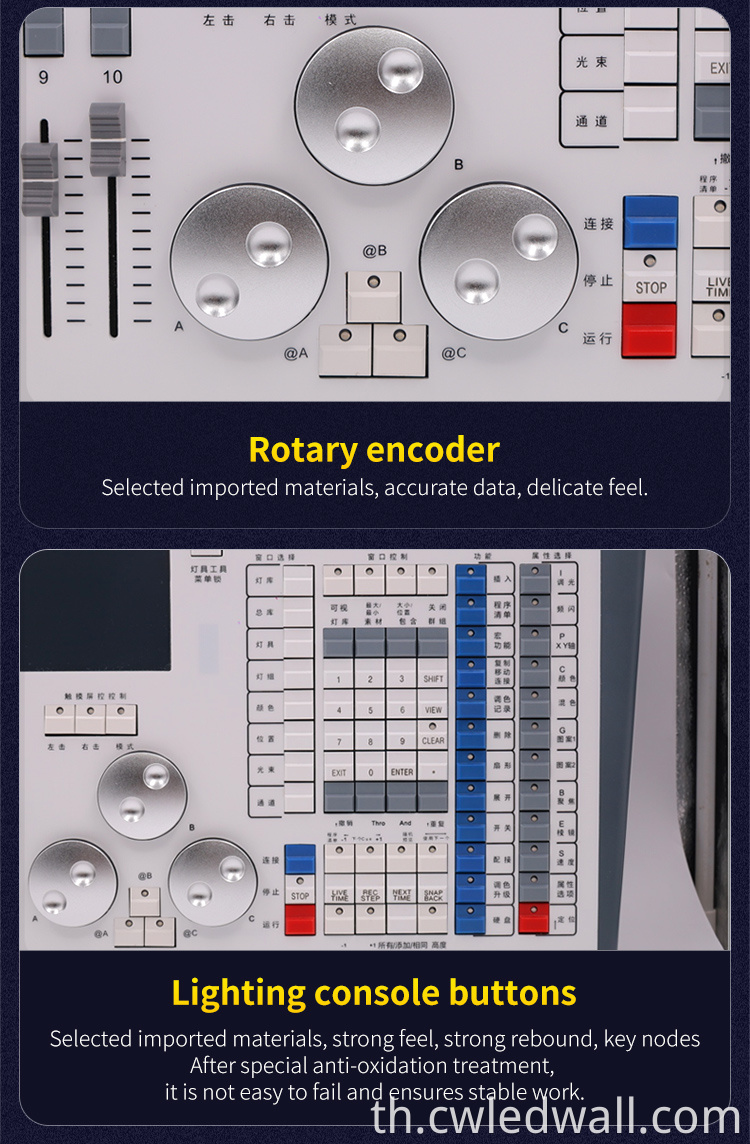

6 imported industrial grade wear-resisting encoders (with push function);

Support CIPT protocol, you can directly see the media server media clips image thumbnails on the console;

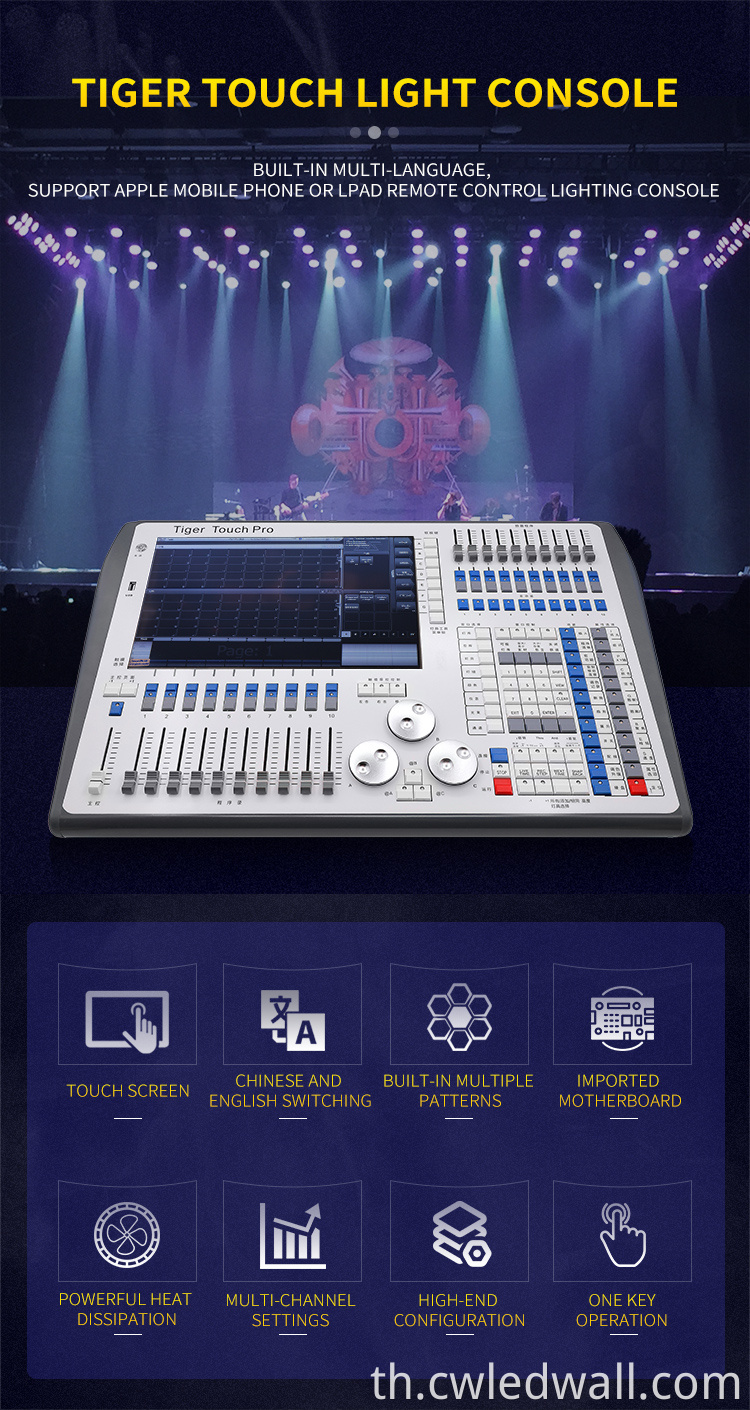

Support for Wi-Fi access, wireless control lights, mobile devices (iPhone, iPad Touch) remote control lighting;

support for MIDI time code sound and light synchronization
